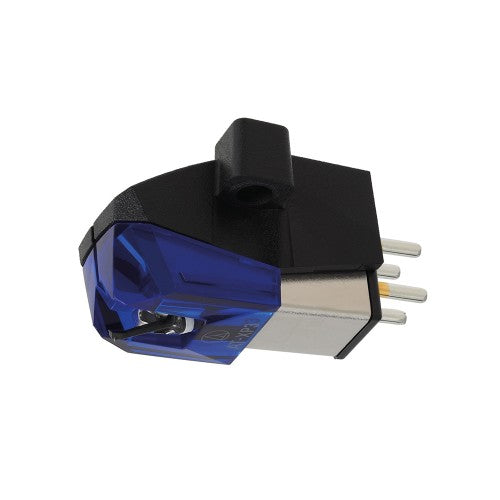

Audio Technica AT-XP3 Dual Moving Magnet Stereo Cartridge


Stock:

Available. Ships within 2-3 weeks
Price:

Sale price£49

The Details

✅ Audio Technica add their vast knowledge to styli for you turntablists
✅ Conical Stylus
✅ Compatible With Styli ATN-XP5 or ATN-XP7

Description

Audio Technica’s AT-XP3 cartridge provides a superb sourd reproduction to a hi-fi level whilst retains its DJ roots.

Its Conical

The Stylus that comes equipped on the AT-XP3 is of a audiophile grade conical styli, meaning it will be more than at home in the booth as well as at home on your own setup.

Send The Reinforcement

The XP3 features reinforced carbon fibre on the cantilever with nylon wire suspension for precise tracking when you need it most

It’s Upgradable

The great thing about the XP3 is that you can also upgrade the styli to a ATN-XP5 or XP7 for further refinement on the soundscape

All products shown online are BRAND NEW and sealed (unless otherwise specified) and include full manufacturer warranties.

Key features
  • Brand : Audio Technica
  • Custom Stock Status : Back-Order
  • Type : Headshell Mounted
  • Includes Extra Stylus : No
Tech specs
Model AT-XP3
Mounting Half-inch
Frequency Response 20 to 18,000 Hz
Channel Separation 20 dB (1 kHz)
Output Channel Balance 2.0 dB (1 kHz)
Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 2.0 to 4.0g (standard 3.0 g)
Stylus Shape Conical
Stylus Size 0.6 mil
Stylus Construction Bonded Round Shank
Cantilever Carbon reinforced ABS
Coil Impedance 6,700 ohms (1 kHz)
Coil Inductance 550 mH (1 kHz)
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
Recommended Load Impedance 47,000 Ω
Recommended Load Capacitance 100-200 pF
Cartridge Weight 6.2g
Dimensions 17.2 x 17.8 x 28.3 ( H x W x D mm)
Replacement Stylus ATN-XP3
Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Two Nut
Non-magnetic screwdriver
